Overviews:

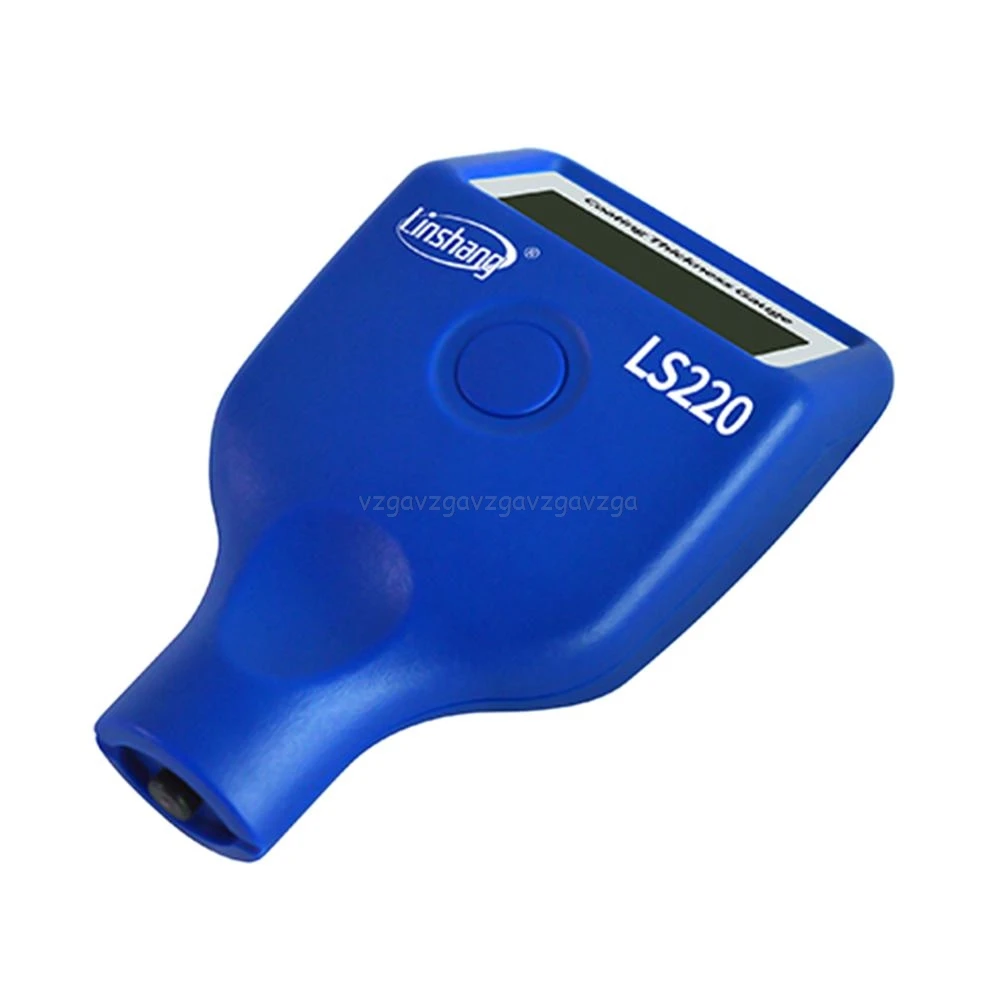

The LS220 coating thickness gauge can be used not only to measure non-magnetic coatings such as paint, varnish, enamel, chrome and galvanizing on ferromagnetism metal substrates such as steel or iron, but also measure Non-conductive coatings such as paint, anodized layers or ceramic on non-magnetic metal substrates such as copper, aluminum, die cast zinc, brass etc. The gauge automatically identifies the substrate and switch measurement mode. It is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other fields.
Features:
1. No calibration, just zero adjustment
2. One hand operation, only one button
3. Fast measurement, 0.5s measuring interval
4. Wear-proof ruby probe tip for long-term use.
5. The gauge automatically identify the substrate and switch measurement mode rapidly.
6. \"Fe\", \"NFe\", \"Fe/NFe\" three measurement modes can be set
7. Measuring non-magnetic coatings on steel or iron and measure Non-conductive coatings on non-magnetic metal substrates in one gauge
8. Thanks to the use of the most-advanced digital probe technology, these sensors are unsusceptible to interference and provide an excellent measuring accuracy. Even variations in temperature will not affect measurement and readings remain stable to ensure a very good reproducibility over the complete measuring range.
Technical parameters:

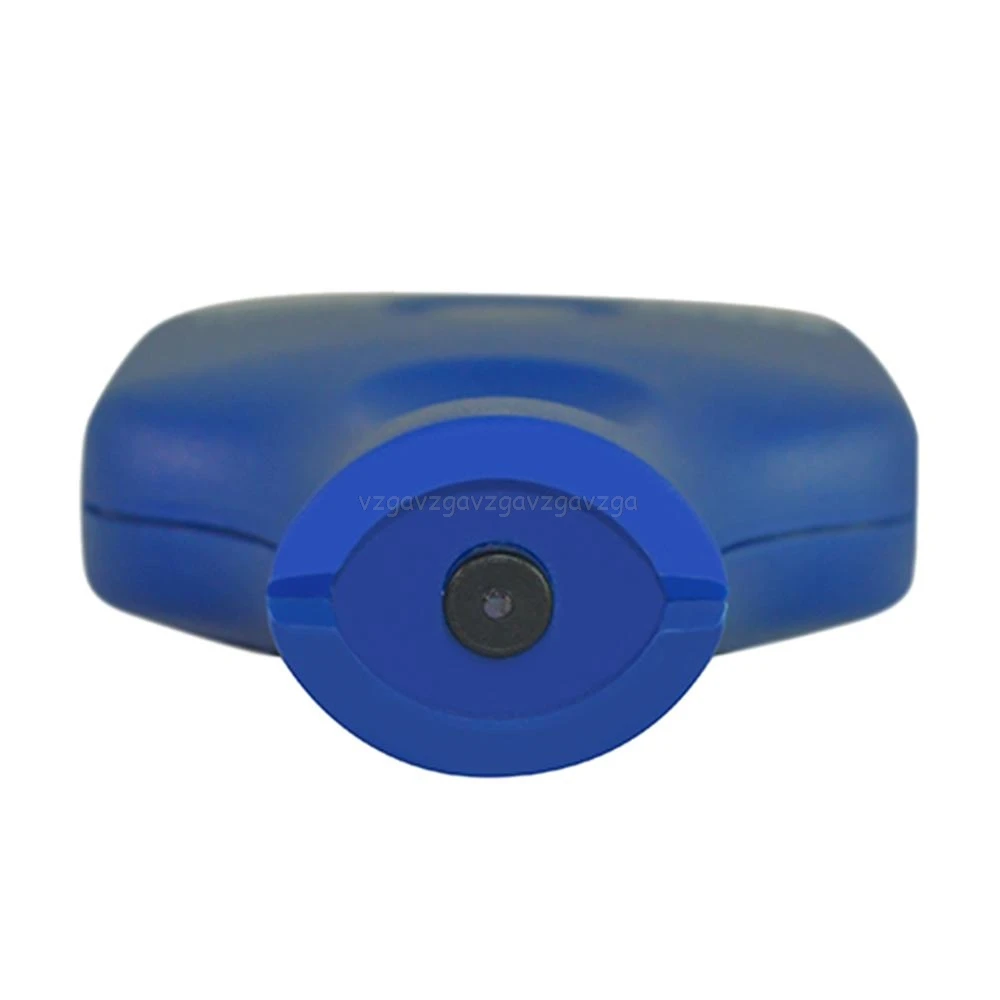

Probe tip: Ruby fixed
Measuring principle: Fe: Hall Effect / NFe: Eddy current
Probe type: LS220: Built-in integrated probe
Measuring range: 0.0-2000μm
Resolution:
0.1μm:(0μm -99.9μm)
1μm:(100μm - 999μm)
0.01mm:(1.00mm - 2.00mm)
Accuracy: ≤±(3% reading+2μm)
Unit: μm / mil
Measuring interval: 0.5s
Minimum measuring area: Ø = 25mm
Minimum curvature: Convex:5mm / Concave:25mm
Minimum substrate thickness: Fe:0.2mm / NFe:0.05mm
Display: 128×48 dot matrix LCD
Power supply: 2pcs of 1.5V AAA alkaline battery
Range of operation temperature: 0°-50°
Storage temperature range: -20°-60°
LS220 Host size : 101*62*28 mm
Standards for the product:
GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating
Thickness-Magnetic Method
GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating
Thickness-Eddy Current
DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for
Coating Thickness
Note:
If you need to know more parameters and how to use before purchasing, please contact us to send a PDF manual.

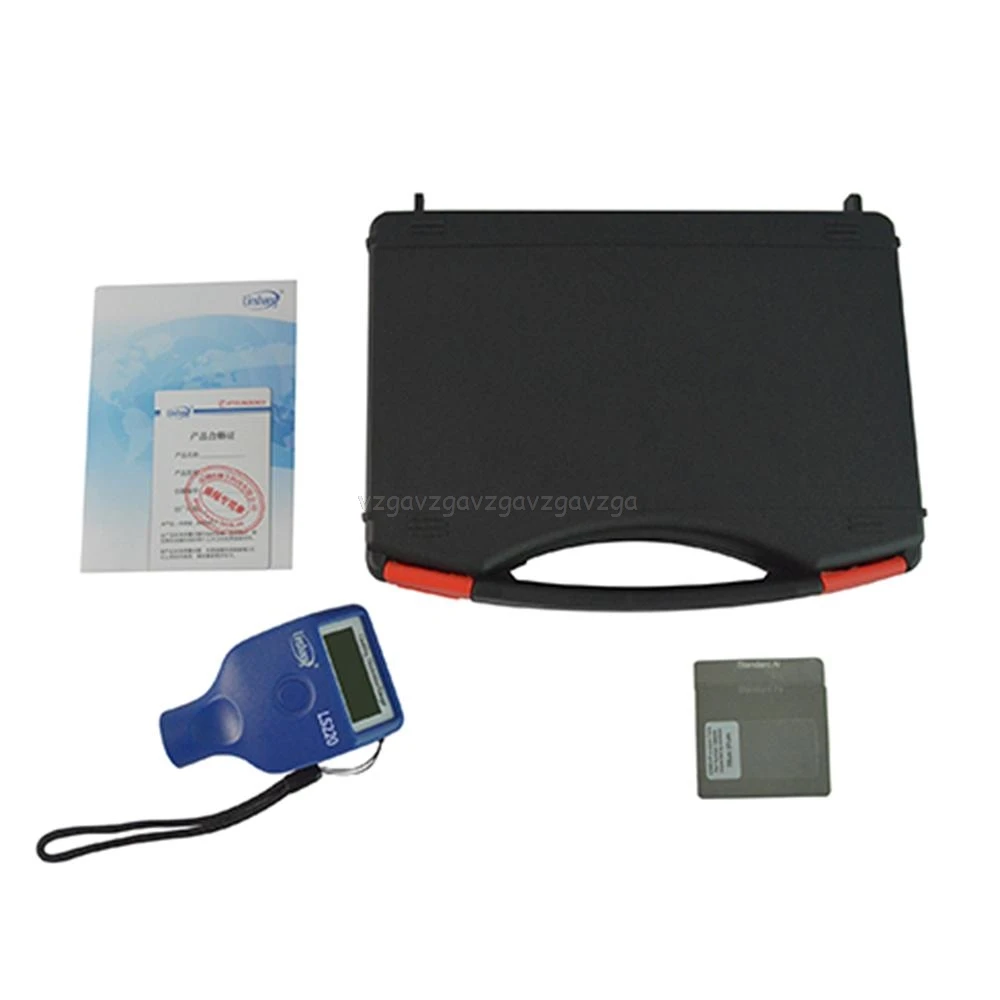

Package included:
1 * LS220 Coating thickness gauge
1 * Fe plate of zero adjustment
1 * NFe plate of zero adjustment
1 * Standard film
1 * Instruction manual
1 * Certificate / Warranty card
